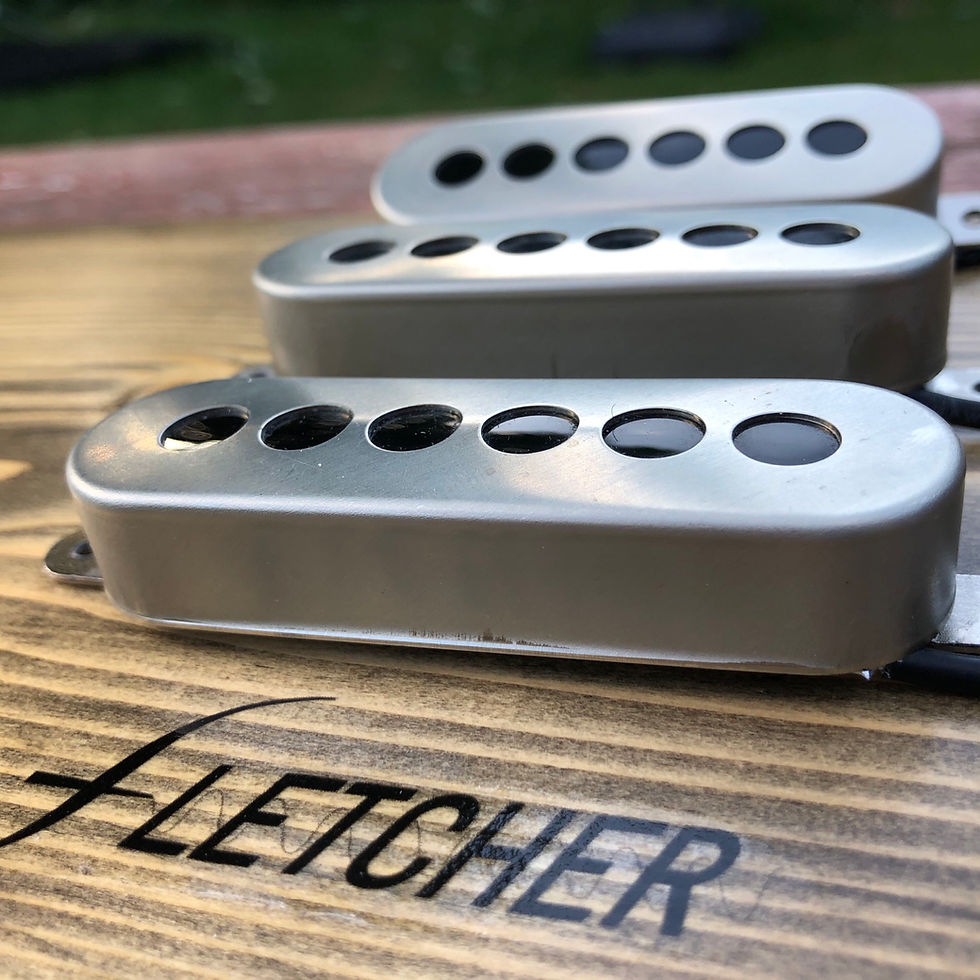

The TriSonic pickup.

So named, and similar to a Jag pickup, as the U-shaped steel baseplate gives two extra point of magnetic field either side of the coil, broadening the overall width of sensitization.

Combined with a very low wind of very thin wire under a brass cover gives this little pickup a unique voice.

Subtleties of the design changed many times over the years.

Mine pay Homage to the most famous set of all!

My TriSonics are scatter-wound with carefully selected wire into Air-Coils,

around vintage correct dual C1/Y10T grade ceramic ferrite magnets.

These are mounted onto a Steel baseplate and topped with a plated Brass cover.

Finished with Grounded two wire leads.

Available with Chrome, Nickel, Unplated, Matt Black or Gold Covers.

Also available with plated Nickel covers for even more top end brightness.

Standard insert is Gloss Black plastic. Or Gold, Silver, Black or Blue foil.

​Two purchasing options:

1: Buy standardised models from the shop section below - use drop down menus to customise.

2. For non-standard orders get in touch direct for a chat: Here

Standard Model

Light Wood Panel

TriSonic

C1/Y10T grade ceramic ferrite

Single Air-Coil wound with thin AWG44 around a duo of Special magnets. Low DC and relatively high Inductance gives a bright articulate tone with controlled low end.

Neck 6.2k 1.9H, Middle 6.9k 2.4H, Bridge 7.5k 2.7H

£85 each £240 set/trio

Optional Extras

Light Wood Panel

£5 each

Relic'd

Artificially aged or Relic'd covers & poles. Old looking pickups for old guitars.
Only available with plated Nickel or Gold (Chrome doesn't relic well with the method I use).

Each relic'd cover will age differently and look different.

Light Wood Panel

£2

Foil'd

Alternative to Black. Gold, Silver, Black & Blue foil.

Light Wood Panel

£0-5

Non-Standard Covers

Plated or raw Nickel-Silver covers can be used for an even brighter tone.

Light Wood Panel

£0-5

Vintage Correct Covers

Brass under Chrome, Nickel, Unplated & Black incur no extra cost. Gold is +£5.

Light Wood Panel

No Extra Cost

Overwound Underwound

Pickups can be Overwound to Vintage-Hot wind for more presence and for brighter guitars or just for a bit more grunt and a more modern sound. All Pickups can be Underwound up to 10% for more clarity or for dark or hollow guitars. Contact me directly to discuss this option.
