Pickups
Vintage to Modern Pickups. Handmade in Birmingham UK.
Get Your Tone!
Mini-Humbuckers have two thin narrow bobbins, packed with hand-wound wire coils over a bar magnet.
One coil with little screws, the other with a chunky bar of steel - its not designed like a normal humbucker and doesn't sound like one either.
Slightly mismatched coils produce a clear aggressive tone with a broad sonic spectrum.
Shielded two wire output as standard. See below for Options.
Fletcher Minis are Modern size and might not fit well within vintage guitars:
Dimensions - 68mm(L - 80mm including mounts) x 28mm (W) x 16.5mm ( H - 26mm including mounts)
1: Choose your Pickup Model
2: Decide on Look (Examples below)
3: Optional Extras?
Gold bars of class
Various combinations of foil & frame available
More than one option for a mini
Gold bars of class
42 III
Vintage Alnico III
Wound with AWG42 to vintage output these use the weakest magnet in the bunch, resulting in less string pull and more natural sustain. A smooth articulate pup.
Neck 7.0K 4.2H
Bridge 7.8K 4.8H
£70 each
42 V
Vintage Alnico V
Wound with AWG42 to vintage output these have a natural open clarity with mellow bass and driving power.
The definitive Mini sound.
Neck 7.0K 4.2H
Bridge 7.8K 4.8H
£70 each
42 II
Vintage Alnico II
Wound with AWG42 to vintage output these have a smooth warmth in the mid and bass and a pleasant trimming of the top end.
Neck 7.0K 4.2H
Bridge 7.8K 4.8H
£70 each
42 VIII
Vintage Alnico VIII
Wound with AWG42 to vintage output these use the strongest alnico magnet for an aggressive pickup with a dominant top end.
The agro Mini sound.
Neck 7.0K 4.2H
Bridge 7.8K 4.8H
£80 each
42 IV
Vintage Alnico IV
Wound with AWG42 to vintage output these are very similar to the 425, but with a slight trimming of the top end.
Neck 7.0K 4.2H
Bridge 7.8K 4.8H
£70 each
43 III
Vintage Alnico III
Wound with thinner AWG43 to vintage output these have similar features to the 423 but with more power and prominent mids. A smooth jazz mini.
Neck 8.4K 4.6H
Bridge 9.2K 5.2H
£70 each
43 V
Vintage Alnico V
Wound with thinner AWG43 to vintage output these have similar features to the 425 but with more power, focus and a smoother mid range.
A more modern mini.
Neck 8.4K 4.6H
Bridge 9.2K 5.2H
£70 each
Mini p90
See p90 page
43 II
Vintage Alnico II
Wound with thinner AWG43 to vintage output these are the warmest mini with a smooth bass and warm mid response.
A smooth modern mini.
Neck 8.4K 4.6H
Bridge 9.2K 5.2H
£70 each
43 VIII
Vintage Alnico VIII
Wound with thinner AWG43 to vintage output these have similar features to the 428 but with more power and thicker mids.
A thoroughly modern mini.
Neck 8.4K 4.6H
Bridge 9.2K 5.2H
£80 each
43 IV
Vintage Alnico IV
Wound with thinner AWG43 to vintage output these have similar features to the 435 with a subtle taming to the top end.
Neck 8.4K 4.6H
Bridge 9.2K 5.2H
£70 each
4400
Modern Alnico V
Wound with thinnest AWG44 to modern output these are aggressive! More compressed and less articulate than the vintage pups, these have a naturally broad mid response and a sound bigger than its diminutive size.
A Monstrous Modern Mini
Neck 12..9K 7.0H
Bridge 13.0K 8.0H
£70 each
Optional Extras
Included - See description

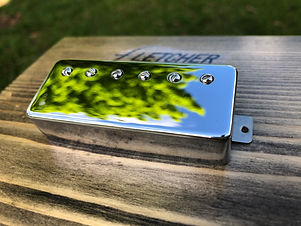

Covered Mini
Mini Humbuckers Pickups have to be covered in Standard 6 pole or Firebird Closed face
Covers are available in the following finishes:
Chrome (as standard), Unplated Raw Nickel, Plated Nickel, Gold(+£10) or Black(+£10)
From £12
Foil'd Mini
Pick an Open Cover finish in Chrome, Nickel, Raw Nickel, Gold or Matt Black
Then pick an Aluminium foil in Silver, Gold, Black, Blue or Pink!
No Extra Cost
Overwound Underwound Mini
All Vintage wind AWG43 pickups can be overwound by 5% to Vintage-Hot for a more edgy, gritty sound. (AWG 42 vintage spec fills the bobbin, so can be wound no more)
All pickups can be underwound by up to 10% for a cleaner, clearer vibe, recommended on semi/hollow bodies or bodies with an overly dark tone.
Overwound recommended for bright bodies, or just more dirt!
+£5 each
Relic'd HB
Artificially aged or Relic'd Humbucker covers available in Nickel or Gold (Chrome doesn't relic well with the method I use).
Each relic'd cover will age differently and look different.
